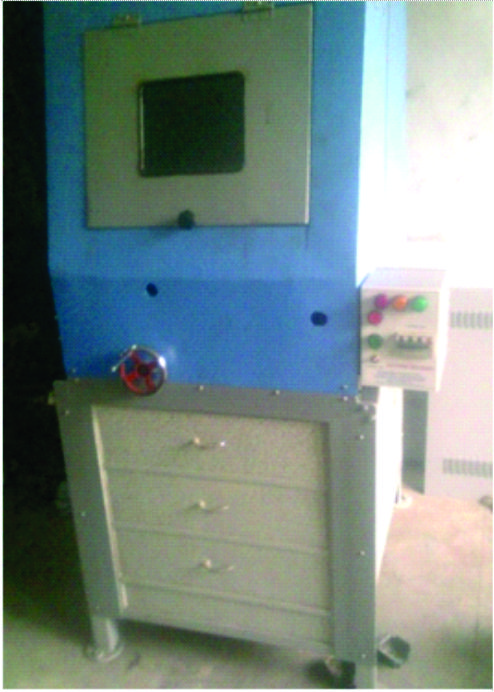

Sample Cutting Machine

Sample Cutting Machine
Sample Cutting Machine
Send Inquiry
Product Code : 001
Product Description

Being a client-oriented organization, we are manufacturing, supplying, exporting and trading optimum performing Sample Cutting Machine. We have manufactured the offered range of machines in adherence with the industry laid standards and norms. Offered machines are commonly used in the metallurgical lab for cutting samples and mounting it in the mold to view the case depth micro structure. Our offered Sample Cutting Machine is available with us at industry leading prices.

Features are as follows:

  • Cutting capacity up to 60 mm
  • 5HP, 3 Phase motor
  • Spindle speed 2000 rpm
  • Cut-off wheel diameter 14
  • Cutting action automatic (longitudinal)
  • With electric motor
  • Splash proof, corrosion resistant, see through hood
  • Four high flow water jets to provide optimum cooling
  • One large 65 mm coolant drain
  • Inbuilt movable recirculation coolant
  • Tank with (100 ltrs. capacity)
  • 1/3 HP Coolant recirculation pump
  • Extra long samples
  • Fluorescent light in the working area for clear illumination
  • Start button with key for safety
  • Machine Size: 1100 x 1250 x 840 mm
  • Stand Size: 700 x 1030 x 810 mm
