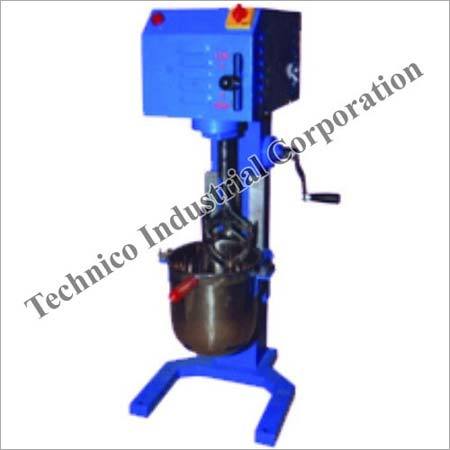

Planetary Mixture Machine for Soil Test
Item Code: PMM-001
We are a renowned name of this domain, which is engaged in manufacturing, supplying, exporting and trading highly durable Planetary Mixture Machine for Soil Test. Offered machines is used to speed up the process with convenience and prepare cylindrical samples of soil for Marshal Stability Testing Machine. Samples are uniformly heated and mixed with the homogeneous substances to make the better molds for testing. This Planetary Mixture Machine for Soil Test is known for its rigid construction and longer functional life.
- Electrically operated, fitted with heating jacket for thorough mixing of Bitumen
- The mixer is operated by 0.5 HP single phase electric motor connected to epicyclic type stainless steel paddle to impart both planetary and revolving motion for uniform mixing
- Mixer blade has low speed of 140 + 5 rpm and medium speed of 285 + 10 rpm
- It also has a planetary movement of 62 + 5 rpm in low range and planetary movement of 125 + 10 rpm in medium range
- A stainless steel bowl of approx. 5 ltr capacity with handle is also supplied
- The 500 Watts heating jacket with energy regulator to control the temp. is fitted below the bowl
- Complete unit is supported on a strong iron frame
- Suitable to work on 220V, 50 Hz, AC single phase
