Laboratory Pulverizer

Laboratory Pulverizer
Laboratory Pulverizer
Send Inquiry
Product Code : 19
Product Description

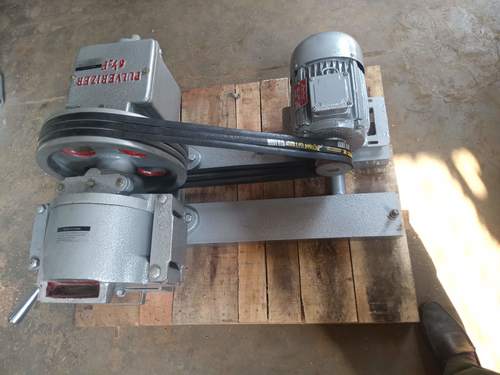

With an aim to be a leader in our domain, we are becoming as one of the trusted manufacturers and suppliers of Laboratory Pulverizer. It is used for continuous and batch grinding of hard & brittle materials. This pulverizer is comprised of two grinding disks having coarse interlocking teeth. It works by pressure & shearing action of these disks and then material falls down automatically into collecting vessel. Laboratory Pulverizer allows easy changing of gap width for desired particle size.


  • Smooth & low noise processing

  • Driven by a rotary motor

  • High torque generation even at low speed




  • Maximum feed size is 1/4 inch grinding is done between two discs one of which is stationary and the other revolving eccentrically at high speed

  • The apparatus is supplied with heat treated disc of 7 inches in diameter adjustment of size of product may be made by use of a convenient hand wheel while the machine is in operation or at rest

  • A self locking device holds the hinged grinding chamber in place

  • Reduces 1 pounds sample of quartz type material to 100 mesh in 1 minute

  • It is a self contained grinder furnished with a rotating disc having a planetary movement in a vertical plane
